Adjustable bookcase strips / Vari shelf rails / shelving rails and supports

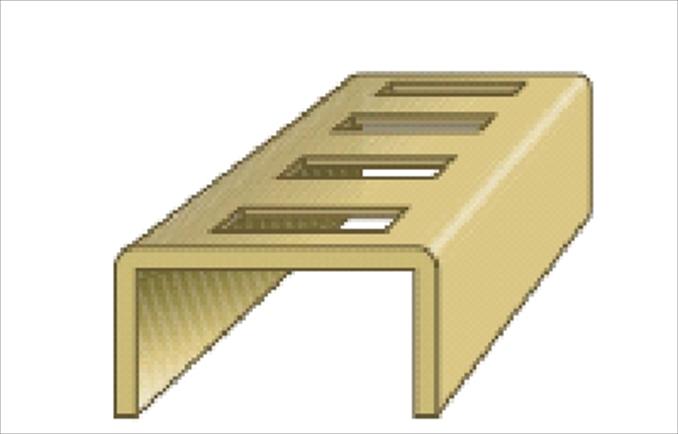

We produce for you a high quality bookcase strip / shelving rails. Standard type like the 10 x 5 mm and 16 x 6 mm bookcase strip is made to be surface fitted or inlaid in order to have a plain and uniform integration inside the shelf. This items are normally used by shop fitters, bookcase and furniture manufactureres.

Possible applications

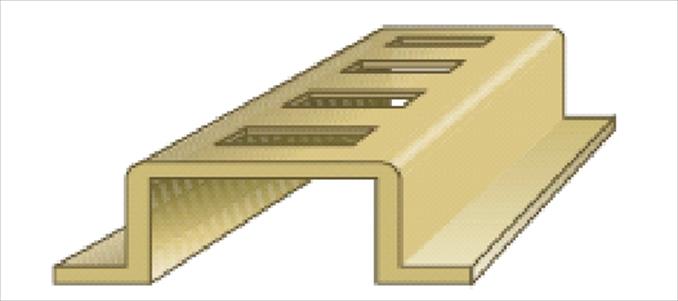

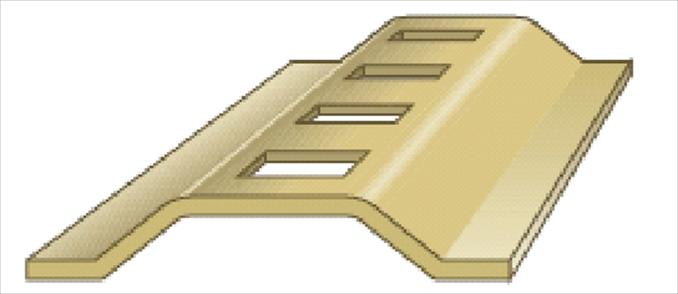

The 33 x 9 mm and 42 x 5 mm sizes are specially constructed for steel cabinets and safes. The two wide flaps allow them to be welded on. Of course you can get them with screw holes additionally to fix them on timber or steel.

Custom made rails

Are you looking for special custom made shelf stips as per your induvidual demands?  Please feel free to send us your blueprint or a sample.

vari rail bookcase strip
bookcase strip vari

Jetzt anfragen

A large line of plating range is available:

Steel:

  • PS - plain / unplated
  • NB - bright or mat nickel plated & clear bake lacquered
  • EB - bright or mat brass plated & clear bake lacquered
  • FB - florentine / statuary bronzed & clear bake lacquered
  • ZP - zinc plated (galvanised)

Stainless steel®:

  • Grade: 1.4301 / AISI 304 - bright finish

Modelle:


  shelf rails bookcase bodenträgerschiene möbel regalschiene tresor bodenträgerschiene vari geldschrank
for metal working
to weld on:
X X
for timber
to screw on:
X X X

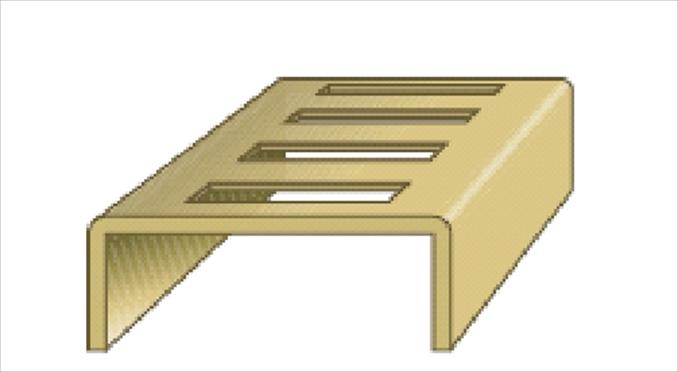

Dimension: 10 x 5 mm 16 x 6 mm 33 x 9 mm 42 x 5 mm
Material thickness: 0,60 mm 0,70 mm 0,70 mm 0,70 mm
Slot spacing: 15 mm 14 mm 14 mm 12,5 mm
Screwhole spacing: 105 mm 98 mm 98 mm


Stock length: 2.000 and 3.500 mm oder custom made lengths.
Special custom made strips on request.

Standard range:



bookcase strips vari rails

Custom made rails (on request):


custom vari rails bookcase strip

Support studs / brackets for bookcase strips:

Steel:

  • PS - plain / unplated
  • NP - bright or mat nickel plated & clear bake lacquered
  • EB - bright or mat brass plated & clear bake lacquered
  • FB - florentine / statuary bronzed & clear bake lacquered
  • ZP - zinc plated (galvanised)

Stainless Steel ®:

  • Grade: 1.4301 / AISI 304 - bright finish

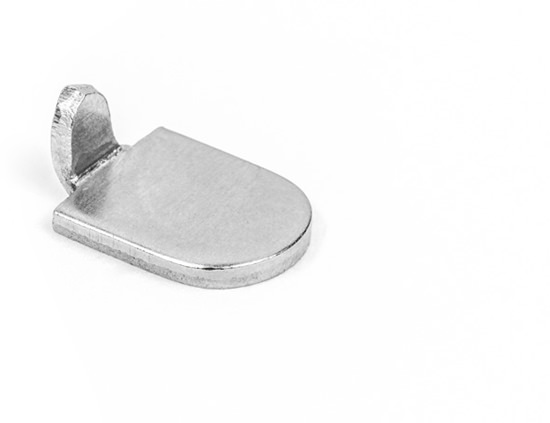

for 10 mm rail #3001
support stud bookcase rail

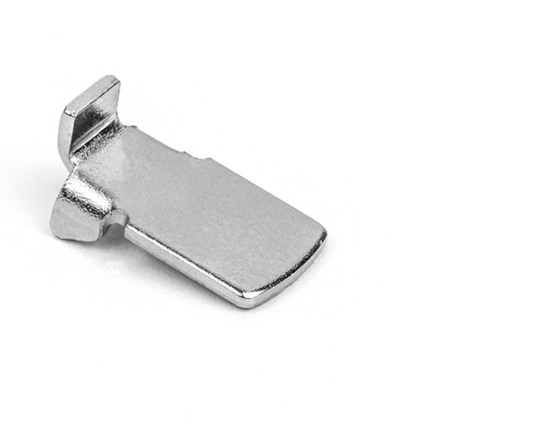

for 10 mm rail #3002

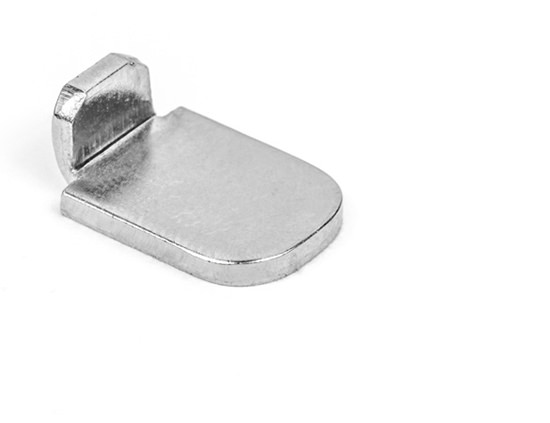

for 16 mm rail #3003
support stud vari rail bookcase strip

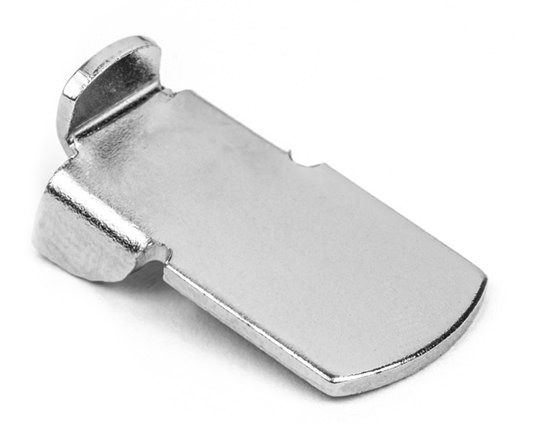

for 16 mm rail #3004

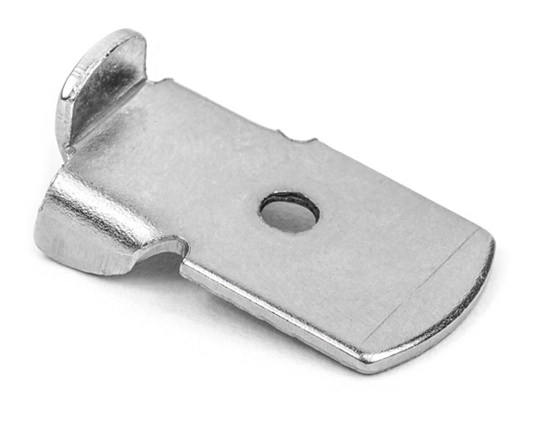

for 16 mm rail #3004 punched
nickel plated stud shelf rails

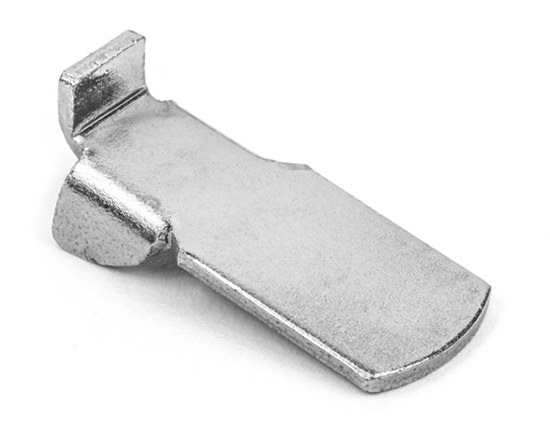

for 16 mm rail #3010

Hinges finish / surface

Steel and preplated steel
Grade: DC01 C290

  • plain steel
  • nickel plated
  • brass plated
  • florentine / statuary bronzed
  • zinc plated


Stainless steel
Grade: AISI 304 & AISI 316

  • 3 D - highly brilliant
  • 3 C - mat finish


Aluminium
Grade: AlMg3

  • natural bright
  • anodized


Solid brass & plated brass
Grade: CuZn37

  • bright (pre polished)
  • nickel plated
  • florentine / statuary bronzed
