Custom made hinge for vending machines, gambling and money counter machines

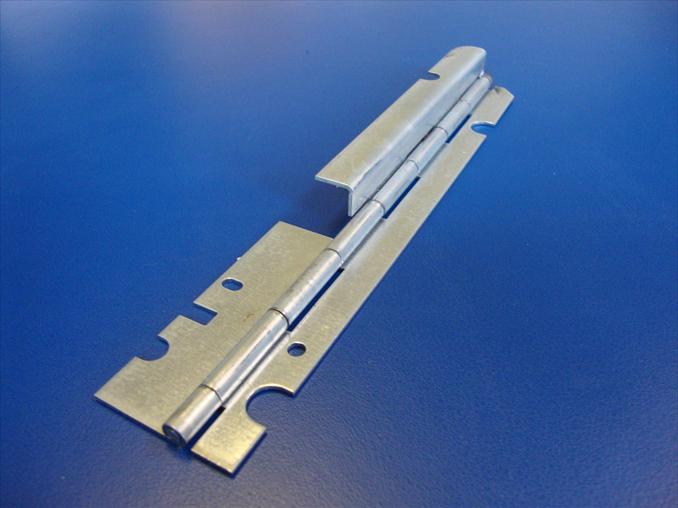

vending automat sonder scharnier 1

Our personalised / customized special made continuous hinges for vending machines such as coffee machines or cash money counter systems and gaming machines or slot / fruit machines are available in a variety of conditioning. Whether with round or square notch or do you need long or oval holes to adjust the hinge?

Very characteristic for vending machine apparatus engineering, such as slot machines is a cable notching in order to create a connection between the door electronic and the one is mounted inside the main unit.

Rounded edges as well as a welded pin, what avoids a extraction of the pin to open the machine the other way round, are specific features of these types of hinges for this industry.

Of course we can produce any kind of perforations. A piano hinge can be fixed with regular counter sunk head screws or do you want to clench / rivet your hinge? In this case we make your hinge with rivet holes. The alignments of the holes are up to you, if parallel of displaced / staggered holes – almost everything is possible.

Ask us ! We are happy to assist you and workout a solution especially for your needs.

more details

Give us a call !

Your personal contact person: Peter Huppertsberg / + 49 (0) 2051 – 2082-27

...or send us an e-mail.

© www.franz-holz.com   Monday, September 12, 2022 10:15 AM Müller

Hinges finish / surface

Steel and preplated steel
Grade: DC01 C290

  • plain steel
  • nickel plated
  • brass plated
  • florentine / statuary bronzed
  • zinc plated

Stainless steel
Grade: AISI 304 & AISI 316

  • 3 D - highly brilliant
  • 3 C - mat finish

Grade: AlMg3

  • natural bright
  • anodized

Solid brass
Grade: CuZn37

  • bright (pre polished)
