Come to the specialist of individual custom made hinges

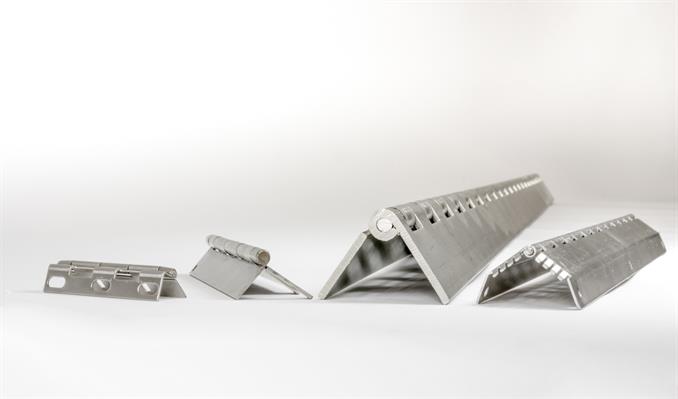

2016_franz_holz_produkte_studio 2 web

Franz Holz is specialized in manufacturing engineered continuous piano hinges. You can choose measurements and outline freely at these hinges.

These hinges come with standard or special holes, or just without holes. If a special hole pattern is needed - we will supply your business with customized hinges.

Our tool shop is well equipped to realize custom designed hinges including offsetting, forming, notching or cranking. Special made boreholes are no problem. Whatever holes you need, we will bring them in.

Please feel free to send us your blueprints or a sample.


your inquiry

Possibilities and solutions of specialty custom made hinges

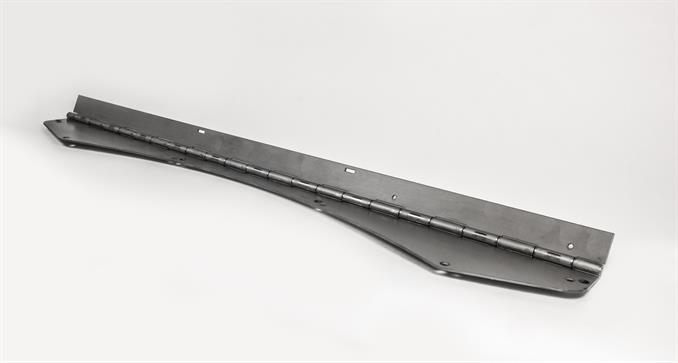

2017_franz_holz_sonderscharnier c

Are you looking for something special?
Ask us !
We manufacture concerning your sample or drawing.

  • manufacturing concerning you sample or drawing
  • own tool desgin and construction
  • own planning and construction office



Here you find a small range of our different possibilities:

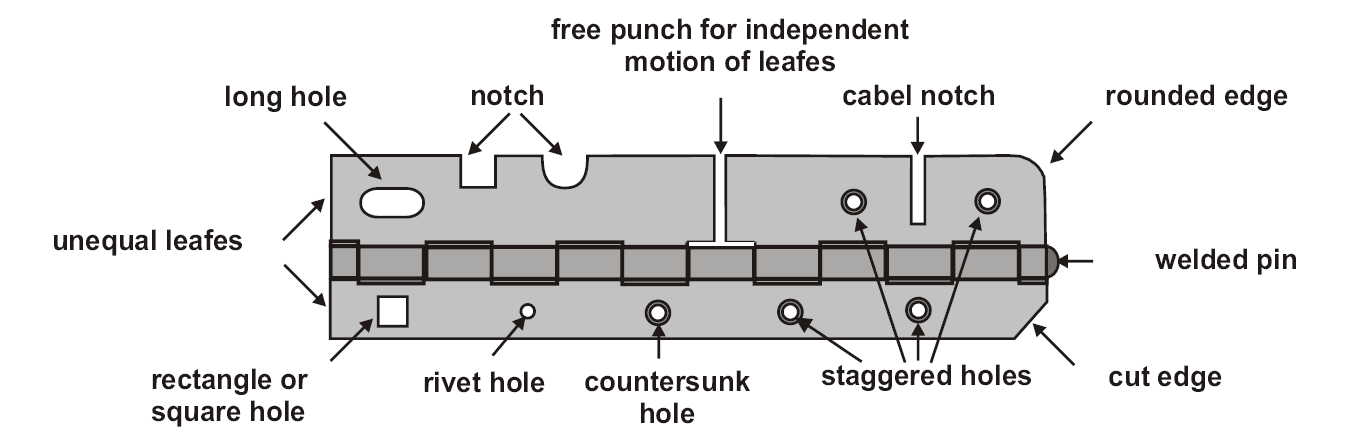

special custom hinge posibilities

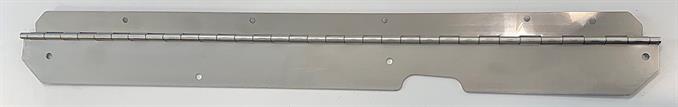

Franz Holz offers a large line of custom made hinges in a variety of treatments. It doesn’t matter whether it is a round or square blanking, long holes or oval holes to adjust the position of the hinge.

Characteristic for construction of apparatus, such as gaming and fruit machines, are unequal hinge leaves which can also be cranked and a cable pass / admission, to enable a connection between the electronic system inside the door of the machine.

Rounded corners and a welded pin, which avoids the extraction of the pin and therefore provides a secure access to the machine, are further details of hinges for construction of apparatus.

As a matter of course we can make all types of holing. So a hinge can be assembled with regular countersunk screws or perhaps it should be riveted?! In that case the hole will have no countersunk to give the rivet a perfect fit.

The arrangement of the holes is up to you – whether it is a parallel or a staggered one, almost anything is possible.

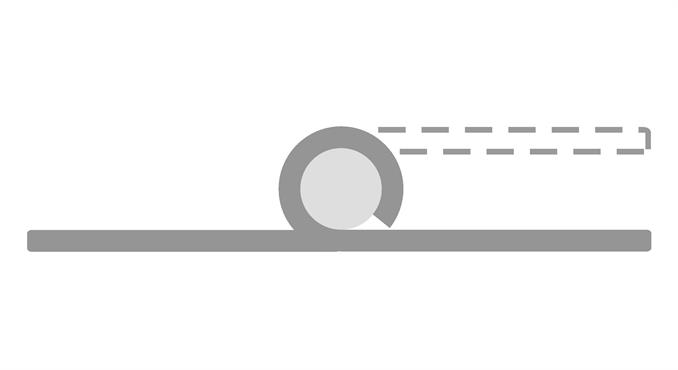

standard assembly piano hinge standard assembly

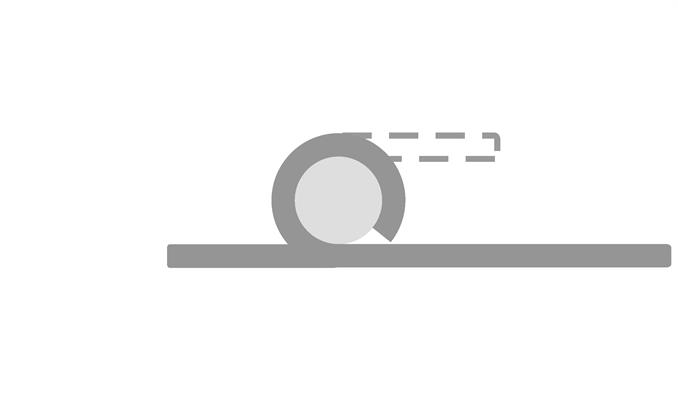

unequal leaves piano hinge unequal leaves

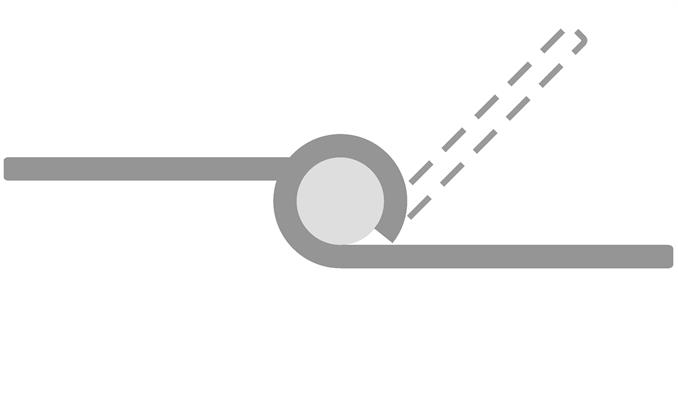

reversed swaged hinge "A" piano hinge reversed swaged

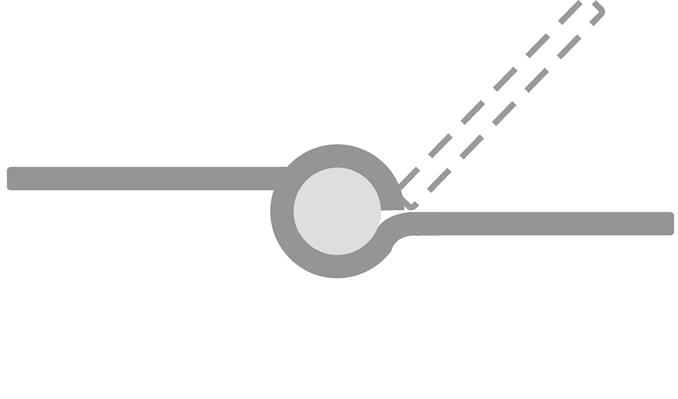

both leaves swaged "B" continuous piano hinge both leaves swaged

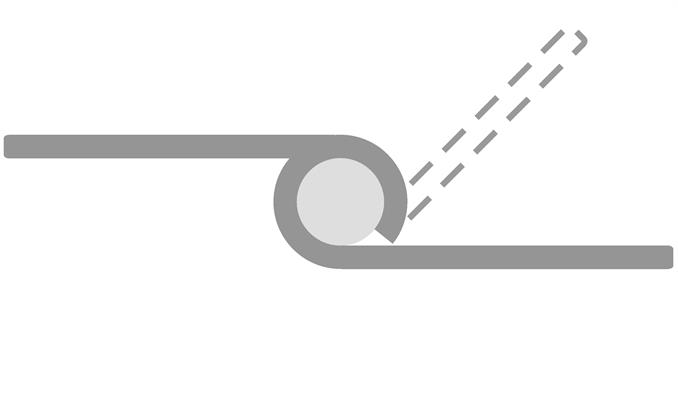

reverse assembly continuous piano hinge reverse assembled

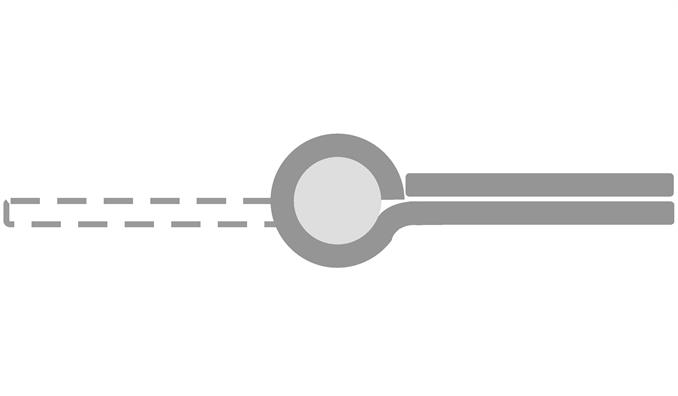

both leaves full swaged / centred "M" piano hinges swaged by Holz Germany

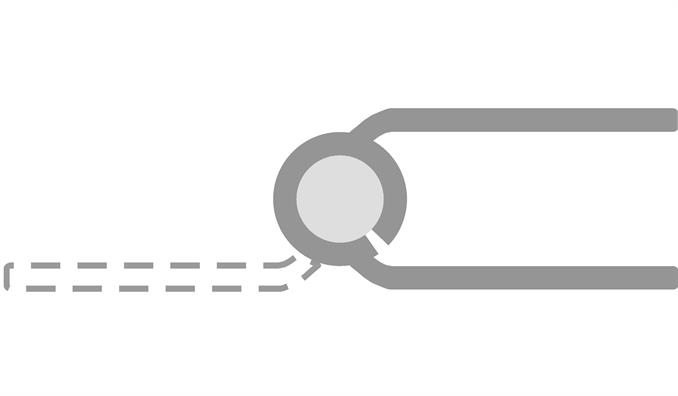

offset piano hinge "F" piano hinges offset

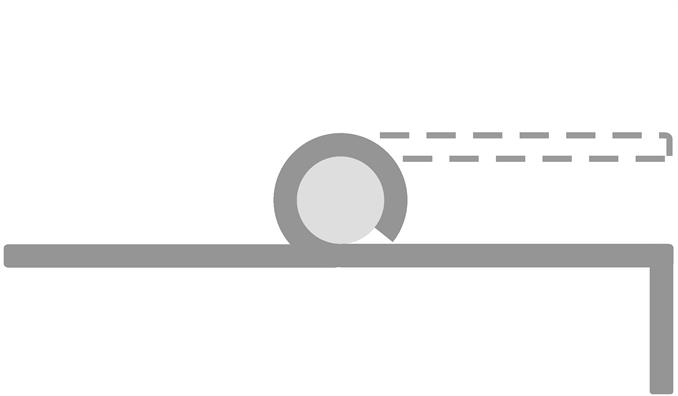

one or both leaves bended / cranked piano hinge bended cranked



Hinges finish / surface

Steel and preplated steel
Grade: DC01 C290

  • plain steel
  • nickel plated
  • brass plated
  • florentine / statuary bronzed
  • zinc plated


Stainless steel
Grade: AISI 304 & AISI 316

  • 3 D - highly brilliant
  • 3 C - mat finish


Aluminium
Grade: AlMg3

  • natural bright
  • anodized


Solid brass & plated brass
Grade: CuZn37

  • bright (pre polished)
  • nickel plated
  • florentine / statuary bronzed
