Continuous piano hinges for DIY do it yourself stores

sb ware4

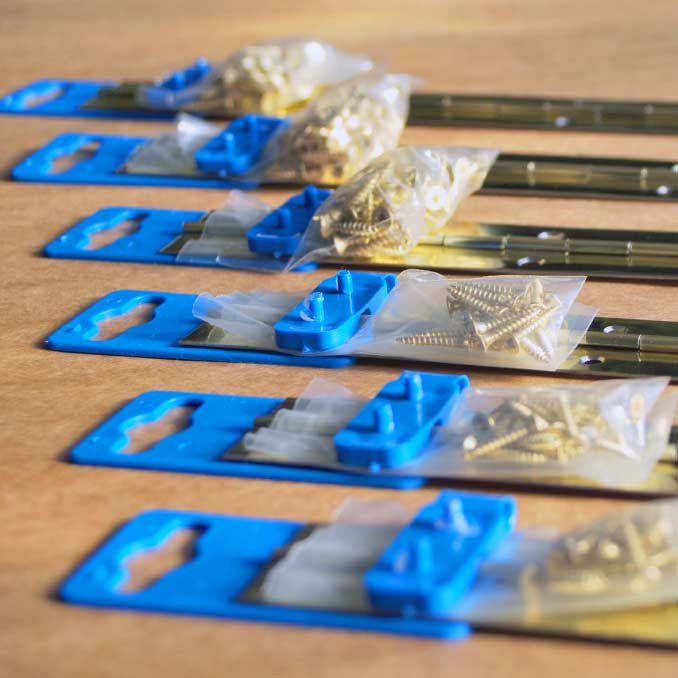

The packing of the continuous piano hinge for self-service divisions have been developed to provide DIY and hardware retailers. They come with pvc hanger / clip, screws in polybag and your induvidual bar code label.

We of course supply piano hinges in bulk, available in various cut lengths in bulk quantity packs.











This is what we can offer to you:

Steel:
PS - plain / unplated
NP - bright or mat nickel plated & clear bake lacquered
EB - bright or mat brass plated & clear bake lacquered
FB - florentine / statuary bronzed & clear bake lacq.
ZP - zinc plated (galvanised)

Stainless steel:
Grade: AISI 304 & AISI 316

Solid brass:
prepolished and highly brilliant
nickel plated
florentine / statuary bronzed & clear bake lacquered

Aluminium:
bright



Sizes:


Open width:

20 mm  -  25 mm  -  28 mm  -  32 mm
3/4"           1"         1 1/16"      1 1/4"

Material thickness: 0,70 mm (.027") & 1,00 mm (.040")
Pin ø: 1,75 mm

Pin material:

steel, stainless steel, aluminium, solid brass
Knuckles/Joints: 15 mm
Holes: drilled and countersunk
Stock length:

300 mm - 400 mm - 500 mm - 600 mm - 750 mm - 900 mm - 1000 mm
1200 mm - 1250 mm - 1500 mm - 1750 mm - 1800 mm - 2000 mm
2050 mm -2100 mm


back to hinges



© www.franz-holz.com   Mittwoch, 6. Juni 2018 17:10 Müller

Hinges finish / surface

Steel and preplated steel
Grade: DC01 C290

  • plain steel
  • nickel plated
  • brass plated
  • florentine / statuary bronzed
  • zinc plated


Stainless steel
Grade: AISI 304 & AISI 316

  • 3 D - highly brilliant
  • 3 C - mat finish


Aluminium
Grade: AlMg3

  • natural bright
  • anodized


Solid brass & plated brass
Grade: CuZn37

  • bright (pre polished)
  • nickel plated
  • florentine / statuary bronzed
