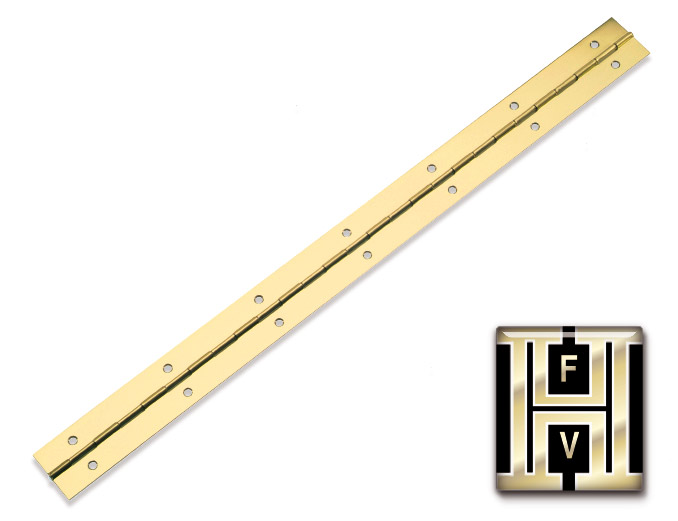

Continuous piano hinges US style

Stangenscharnier messing

Continuous piano hinges especially developed for countries in which the inch measure system is common are available in material thickness of .040" and .049" and in several finishes. Of course we can set up a custom made hinge concerning your induvidual needs.

As our latest innovation we are happy to present our powder coated finish, which are available in many different colours.

Steel:
plain / unplated
nickel plated & clear bake lacquered
brass plated & clear bake lacquered
florentine / statuary bronzed & clear bake lacquered

zinc plated (galvanised)


Stainless steel:
Grade: 1.4301 / AISI 304 & 1.4404 / AISI 316
mat or bright finish


Aluminium:
bright

Solid brass:
bright
pre-polished / shiny

Sizes:


Open width:    28         32        38      50 mm
1.1/16"   1.1/4"   1.1/2"     2"
Material thickness:

1,00   &  1,25 mm
.040"      .049"

Pin ø: 2,50 mm & 3,00 mm
 .10"           .12"
Pin material: steel, stainless steel, aluminium, solid brass
Knuckles/Joints: 12,7 mm
1/2"

Holes:

undrilled or drilled, countersunk-, rivet-  or special perforation
Stock length: 1.830 mm (72" / 6ft.) or custom made
back to hinges





© www.franz-holz.com   Dienstag, 5. Dezember 2017 16:59 Müller

Hinges finish / surface

Steel and preplated steel
Grade: DC01 C290

  • plain steel
  • nickel plated
  • brass plated
  • florentine / statuary bronzed
  • zinc plated


Stainless steel
Grade: AISI 304 & AISI 316

  • 3 D - highly brilliant
  • 3 C - mat finish


Aluminium
Grade: AlMg3

  • natural bright
  • anodized


Solid brass & plated brass
Grade: CuZn37

  • bright (pre polished)
  • nickel plated
  • florentine / statuary bronzed
